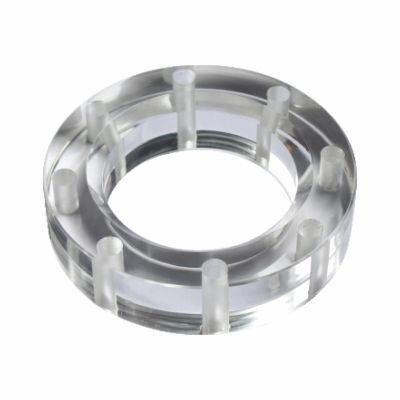

Sight Glass

Sight Glass

Sight Glass

Productdetails

Plaats van herkomst: China

Merknaam: COWELL

Modelnummer: YJ6202,6203

Betaling & het Verschepen Termijnen

Min. bestelaantal: 2

Verpakking Details: T/T, Western Union

Levertijd: 3-7 werkdagen

Betalingscondities: T/T

Krijg Beste Prijs

Contact nu

Specificaties

Beschrijving

Specificaties

Markeren:
                                                                                                                                                                                                                                                            sight glass, Aluminum sight glass, plastic sight glass


Materiaal:	Aluminium, Plastiek	Maat:	3" & 4"
Dikte:	28 mm, 40 mm, 50 mm, 75 mm

Materiaal:	Aluminium, Plastiek
Maat:	3" & 4"
Dikte:	28 mm, 40 mm, 50 mm, 75 mm

Beschrijving

Sight Glass

Description

Sight glass flanges is installed between pipe outlet flange and API valve

to show if product is present and its color to confirm product identification.

The standard drilling is TTMA, different thickness is for your option.

Characteristics

Light and compact structure, easy to install and use
Main material is made of plastic or aluminum
Can check the transferring liquid
Flange meets TTMA standard
Pressure to 3000KPa
Max. temperature 70℃

Material

Body: Aluminum alloy

Mirror: Glass

Seal: NBR

Technical Specification
Model	YJ6202A	YJ6202B	YJ6203A	YJ6203B
Size	3"	4"	3"	4"
Thickness	28mm/40mm	28mm/40mm	50mm	75mm
Material	Plastic	Plastic	Aluminum	Aluminum
